Brass Wipping Cable Glands
we are manufacturing, supplying and exporting a comprehensive range of high quality Brass Wiping Glands. We have manufactured these brass wiping glands in complete adherence with the international quality norms. Along with this, to suit clients exact requirements, we customize our offered range of brass wiping glands as per the specifications detailed by them.

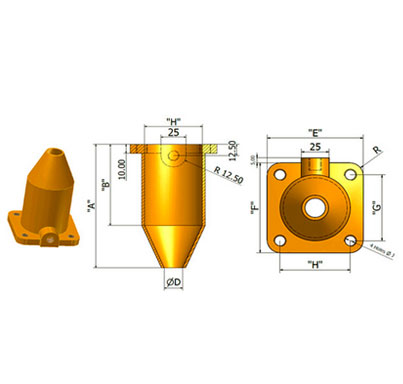

Wiping Gland “X” and “Y”
| Gland Size |
Dai. over metal sheath of Cable |
Dimension in mm |
| A |
B |
ØC |
ØD |
E |
F |
G |
H |
ØJ |
R |
| X |
12 to 51 |
137 |
90 |
60 |
19 |
90 |
90 |
66 |
66 |
12 |
12 |
| Y |
25 to 78 |
155 |
95 |
108 |
32 |
114 |
123 |
95 |
86 |
14 |
14 |
| Material |
Brass BS 2874 |
| Size |
X and Y |
| Application |
For Use with SWA, Plastic and Rubber (Elastomer) sheathed cables. Used in dry indoor conditions. |
| Accessories |
Hot Dip Galvanised Mild Steel Clamp, Neoprene Gasket |
|

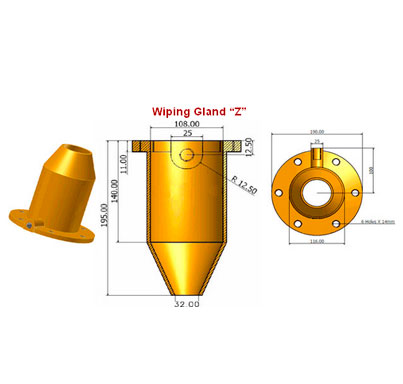

Wiping Gland “Z”
| Gland Size |
Dai. over metal sheath of Cable |
Dimension in mm |
| A |
B |
ØC |
ØD |
E |
F |
ØJ |
| Z |
25 to 94 |
195 |
140 |
108 |
32 |
190 |
100 |
14 |
|
| Material |
Brass BS 2874 |
| Size |
Z |
| Application |
For Use with SWA, Plastic and Rubber (Elastomer) sheathed cables. Used in dry indoor conditions. |
| Accessories |
Hot Dip Galvanised Mild Steel Clamp, Neoprene Gasket |
We Manufacture and Export High Quality Alco Cable Glands exactly as per Customer Specifications, Drawing & Requirement.
We are one of the leading manufacturers suppliers exporters of Brass Wipping Cable Glands. Please contact us for all your needs of Brass Wipping Cable Glands from Jamnagar- India at best pricing.
