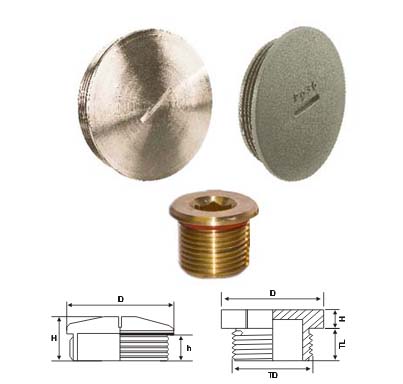

Brass PG Threaded Stop Plugs

Brass PG Threaded Stop Plugs

Technical Data

Material 20 mm to 90 mm S & L
Threads available Pg, Metric

Pg Thread in Polyamide

Size Cat. No.Grey Cat. No.Black H (mm) D (mm) h (mm) Standard Pack(pieces)
Pg 7 BBS-01 BBS-21 8.0 15 4.5 50
Pg 9 BBS-02 BBS-22 9.0 19 4.5 50
Pg 11 BBS-03 BBS-23 9.0 22 4.5 50
Pg 13.5 BBS-04 BBS-24 9.5 25 4.5 50
Pg 16 BBS-05 BBS-25 9.5 27 4.5 50
Pg 21 BBS-06 BBS-26 11.0 33 6.0 50
Pg 29 BBS-07 BBS-27 12.0 44 6.0 6.0
Pg 36 BBS-08 BBS-28 15.0 55 8.0 50
Pg 42 BBS-09 BBS-29 16.0 62 8.0 50
Pg 48 BBS-10 BBS-30 16.0 69 10.0 50

Metric Thread in Polyamide

Size Cat. No.Grey Cat. No.Black H (mm) D (mm) h (mm) Standard Pack(pieces)
M 12 x 1.5 BMBS-0S BMBS-2S 6 15 4.5 50
M 16 x 1.5 BMBS-01 BMBS-21 6 20 4.5 50
M 20 x 1.5 BMBS-02 BMBS-22 6 24 4.5 50
M 25 x 1.5 BMBS-03 BMBS-23 8 30 6.0 50
M 32 x 1.5 BMBS-04 BMBS-24 11 37 8.0 50
M 40 x 1.5 BMBS-05 BMBS-25 13 46 9.0 50
M 50 x 1.5 BMBS-06 BMBS-26 17 56 12.0 10
M 63 x 1.5 BMBS-07 BMBS-27 18 70 12.0 10

Metric Thread in Polyamide (Explosion Proof)

Size Cat. No. Thread Diameter TD(mm) Thread LengthTL (mm) H (mm) D (mm) Standard Pack (pieces)
M 12 x 1.5 EBMBS-XS 12 10 5 17.5 50
M 16 x 1.5 EBMBS-X1 16 15 4.3 22 50
M 20 x 1.5 EBMBS-X2 20 15 6 26 50
M 25 x 1.5 EBMBS-X3 25 15 5.8 32 50
M 32 x 1.5 EBMBS-X4 32 15 7.8 41.5 10
M 40 x 1.5 EBMBS-X5 40 18 8.5 53 10
M 50 x 1.5 EBMBS-X6 50 18 9.5 63.5 10
M 63 x 1.5 EBMBS-X7 63 18 9.5 80 10

Pg Thread in Brass

Size Cat. No. H (mm) D (mm) h (mm) Standard Pack(pieces)
Pg 7 SBBS-01 BMBS-2S 7 14 50
Pg 9 SBBS-02 8 17 5.5 50
Pg 11 SBBS-03 9 20 6 50
Pg 13.5 SBBS-04 9.5 22 6.5 50
Pg 16 SBBS-05 9.5 24 6.5 50
Pg 21 SBBS-06 11 30 7 50
Pg 29 SBBS-07 12 40 8 50
Pg 36 SBBS-08 14 50 9 50
Pg 42 SBBS-09 15 57 10 50
Pg 48 SBBS-10 15 64 10 50

Metric Thread in Brass

Size Cat. No. H (mm) D (mm) h (mm) Standard Pack(pieces)
M 12 x 1.5 SMBBS-0S 7 14 5 100
M 16 x 1.5 SMBBS-01 8 18 5.5 100
M 20 x 1.5 SMBBS-02 9.5 22 6.5 50
M 25 x 1.5 SMBBS-03 10 27 7 50
M 32 x 1.5 SMBBS-04 11 35 7.5 25
M 40 x 1.5 SMBBS-05 12.5 44 8.5 25
M 50 x 1.5 M 50 x 1.5 14.5 54 9.5 25
M 63 x 1.5 SMBBS-07 15 67 10 25

We are one of the leading manufacturers suppliers exporters of Brass PG Threaded Stop Plugs. Please contact us for all your needs of Brass PG Threaded Stop Plugs from Jamnagar- India at best pricing.
