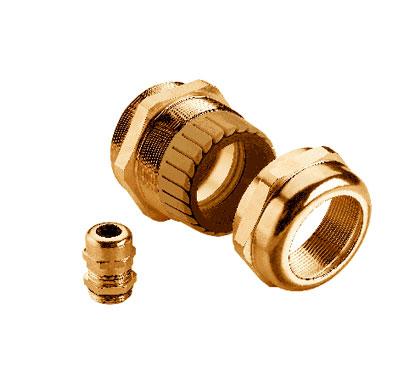

Brass Metric Strain Relief Cable Glands
We are manufacture of Brass Metric Strain Relief Cable Glands. We can provide high quality of Brass Metric Strain Relief Cable Glands. We are manufacture of requirements of customers.
BRASS CABLE GLANDS BRASS METRIC CABLE GLANDS |
|
| These metallic glands are liquid tight, offer excellent strain relief and have lameller designed plastic inserts for protection against distortion. These glands are suitable for use in machinery and equipment, measuring and controlling devices, medical equipments and many other fields where exceptional stability and safe functioning is required. Cable glands with long thread length or reduced clamping range are also available on request. | |
Technical Details |
|
| Material Clamping Insert Protection Class Sealing Ring O Ring Temperature Range Threads available Approvals |
Brass, Nickel Plated Polyamide 6 IP 68 Neoprene Perbunan (NBR) -40° C to + 100° C Pg, Metric and NPT VDE, HALLOGEN FREE |
Pg Thread |
||||||
| Size | Cat. No. | Standard Pack (Pieces) |
Thread Diameter (mm) |
Thread Length (mm) |
Spanner (mm) | Clamping Range (mm) |
| Pg 7 Pg 9 Pg 11 Pg 13.5 Pg 16 Pg 21 Pg 29 Pg 36 Pg 42 Pg 48 |
BSBC-01 BSBC-02 BSBC-03 BSBC-04 BSBC-05 BSBC-06 BSBC-07 BSBC-08 BSBC-09 BSBC-10 |
50 50 50 50 25 25 20 15 12 12 |
13 16 19 21 23 29 37 47 54 59 |
6 6 6 6.5 6.5 7 8 10 12 14 |
14 17 20 22 24 30 40 50 58 64 |
3 - 6.5 4 - 8 5 - 10 6 - 12 10 - 14 13 - 18 18 - 25 22 - 32 30 - 38 34 - 44 |
|---|---|---|---|---|---|---|
Metric Thread |
||||||
| Size | Cat. No. | Standard Pack (Pieces) |
Thread Diameter (mm) |
Thread Length (mm) |
Spanner (mm) | Clamping Range (mm) |
| M 12 x 1.5 M 16 x 1.5 M 16 x 1.5 M 20 x 1.5 M 25 x 1.5 M 25 x 1.5 M 32 x 1.5 M 32 x 1.5 M 40 x 1.5 M 40 x 1.5 M 50 x 1.5 M 63 x 1.5 M 72 x 1.5 M 75 x 1.5 M 80 x 1.5 M 85 x 1.5 |
BMBC-0S BMBC-01 BMBC-E1 BMBC-02 BMBC-03 BMBC-E3 BMBC-04 BMBC-E4 BMBC-05 BMBC-E5 BMBC-06 BMBC-07 BDSM-08 BDSM-09 BDSM-10 BDSM-11 |
50 50 50 20 20 20 10 10 10 10 5 5 5 5 5 5 |
12 16 16 20 25 25 32 32 40 40 50 63 72 75 80 85 |
6 7 7 8 8 8 9 8 9 9 9 14 16 18 20 22 |
14 17 20 22 24 27 30 34 40 43 50 64 72 77 90 92/95 |
3 - 6.5 4 - 8 5 - 10 6 - 12 10 - 14 11 - 17 13 - 18 15 - 21 18 - 25 19 - 28 22 - 32 34 - 44 56 - 62 56 - 65 62 - 66 67 - 77 |
NPT Thread |
||||||
| Size | Cat. No. | Standard Pack (Pieces) |
Thread Diameter (mm) |
Thread Length (mm) |
Spanner (mm) | Clamping Range (mm) |
| NPT 3/8" NPT 1/2" NPT 3/4" NPT 1" |
BNBC-01 BNBC-02 BNBC-03 BNBC-04 |
50 50 20 20 |
16 21 29 33.2 |
15 13 13 13 |
17 22 30 43 |
4 - 8 6 - 12 13 - 18 18 - 25 |
We are one of the leading manufacturers suppliers exporters of Brass Metric Strain Relief Cable Glands. Please contact us for all your needs of Brass Metric Strain Relief Cable Glands from Jamnagar- India at best pricing.
