Brass Marine Cable Glands

We are counted amongst the leading manufacturers and suppliers of this highly commendable range of Marine Brass Cable Gland. For reasons of maintaining this reputation, we engage in the utilization of high grade raw materials. Manufactured in compliance with the set industry norms and guidelines, its quality never deteriorates. Further, it is quite reasonably priced.

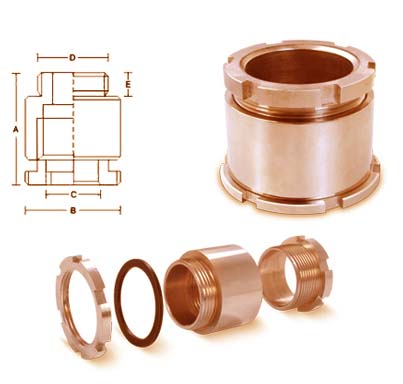

Brass Marine Cable Glands

Size 10 mm 15mm 20mm 25mm 30mm 35mm 40mm 50mm 55mm 60mm 70mm 75mm 80mm 90mm
Application Outdoor or Indoor for use with all types of braided or unarmoured Marine electrical cable fittings
Ingress Protection IP54 IP66
Optional Thread ISO Metric, NPT, NPS, BSP, BSPT, PG
Finish Chrome Finish, Brass Finish, Nickel Finish or as specified
Material Brass BS 2874 CZ121 Pb3
Sizes Metric from 10 mm to 60 mm in JIS, PG 7 to PG 48 in DIN from M 16 to M 90 in BS  JIS  8801 JIS 8802 JIS 8803

Technical Data:
Size A B C D E F G H I
10 45.00 21.50 10.00 3/8" BSP 11.00 5.00 28.00 22.00 4.00
15 50.00 27.50 15.00 1/2" BSP 11.00 5.00 31.20 26.20 4.00
20 53.00 33.50 20.00 3/4" BSP 10.00 5.00 37.00 32.00 6.00
25 60.00 41.50 25.00 1" BSP 11.00 6.00 46.00 40.00 6.00
30 65.00 49.50 30.00 1.1/4" BSP 12.00 6.00 56.00 48.00 8.00
35 70.00 55.50 40.00 1.1/2" BSP 12.00 6.00 63.000 55.00 8.00
40 70.00 55.50 40.00 1.1/2" BSP 12.00 6.00 63.00 55.00 8.00
45 85.00 69.50 50.00 2" BSP 12.00 6.00 76.00 67.00 10.00
50 85.00 69.50 50.00 2" BSP 12.00 6.00 76.00 67.00 10.00
55 87.00 85.50 60.00 2.1/2" BSP 12.00 6.00 95.00 86.00 10.00
60 88.00 85.50 60.00 2.1/2" BSP 12.00 6.00 95.00 86.00 10.00
65 100.00 99.50 70.00 3" BSP 14.00 6.00 112.00 100.00 12.00
70 110.00 99.50 70.00 3" BSP 14.00 6.00 112.00 100.00 12.00

Also available in Kit Packaging and also as per the specification.

We are one of the leading manufacturers suppliers exporters of Brass Marine Cable Glands. Please contact us for all your needs of Brass Marine Cable Glands from Jamnagar- India at best pricing.
