Brass CXT Cable Glands
We are engaged in offering a wide range of excellent quality Brass CXT Cable Glands, which is manufactured by our experienced professionals in compliance with the industry laid standards. To ensure that clients get only defect-free range of Brass CXT Cable Glands, our quality controllers carefully test the entire range on various pre-defined parameters. Below mentioned are the magnificent quality attributes of these Brass CXT Cable Glands.
| Size | 16mm to 90mm & 3/4" to 3½" |
| Standard | BS 6121 - 1 - 2005 |
| Application | For indoor and outdoor cable gland for use with all types of Shielded Flex (SY) and Screened Flexible Cable (CY) to Unscreened or Unshielded Control Cable (YY). |
| Function | providing environmental seal on outer sheaths of the unarmored Cable. |
| Ingress | IP66 |
| Protection Material | Brass BS 2874, Nickle Plated Brass |
| Thread | BSP & NPT |
| Operating Temp. | -20° C to + 80° C |
| Accessories | -20° C to + 80° C |

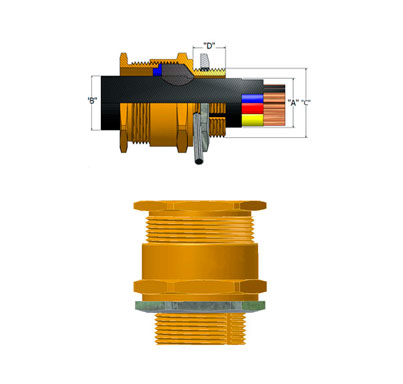

| Size | Thread size “C” | Thread Length “D” |
Cable Dimension | A/F | A/C | Product Code | |||
| Metric | BSP | NPT | A Min | B Max | |||||
| CXT-16 | 16 | 5/8” | ½” | 15.00 | 3.10 | 8.60 | 21.00 | 23.00 | ACXT-16 |
| CXT-20S | 20 | ¾” | ½” | 15.00 | 6.10 | 11.60 | 24.00 | 26.50 | ACXT -20S |
| CXT-20 | 20 | ¾” | ½” | 15.00 | 6.50 | 13.90 | 27.00 | 30.00 | ACXT -20 |
| CXT-25 | 25 | 1” | 3/4” | 15.00 | 11.10 | 19.90 | 36.00 | 39.75 | ACXT -25 |
| CXT-32 | 32 | 1 ¼” | 1” | 15.00 | 17.00 | 26.15 | 41.00 | 46.00 | ACXT -32 |
| CXT-40 | 40 | 1 ½” | 1 ¼”” | 15.00 | 22.00 | 32.10 | 49.25 | 55.00 | ACXT -40 |
| CXT-50S | 50 | 2” | 1 ½” | 15.00 | 29.80 | 38.10 | 54.75 | 61.30 | ACXT -50S |
| CXT-50 | 50 | 2 ” | 1 ½” | 15.00 | 36.90 | 43.30 | 60.00 | 66.50 | ACXT -50 |
| CXT-63S | 63 | 2 ½” | 2 ” | 15.00 | 42.20 | 49.90 | 70.25 | 77.50 | ACXT -63S |
| CXT-63 | 63 | 2 ½” | 2 ” | 15.00 | 48.30 | 54.90 | 74.75 | 83.00 | ACXT -63 |
| CXT-75S | 75 | 3” | 2 ½” | 15.00 | 54.20 | 62.00 | 80.00 | 89.00 | ACXT -75S |
| CXT-75 | 75 | 3” | 2 ½” | 15.00 | 59.80 | 66.90 | 84.00 | 94.00 | ACXT -75 |
| CXT-90 | 90 | 3 ½” | 3” | 15.00 | 66.60 | 79.30 | 107.00 | 119.70 | ACXT -90 |
We Manufacture and Export High Quality CXT Cable Glands exactly as per Customer Specifications, Drawing & Requirement.
We are one of the leading manufacturers suppliers exporters of Brass CXT Cable Glands. Please contact us for all your needs of Brass CXT Cable Glands from Jamnagar- India at best pricing.
