Brass CX Type Cable Glands
We are one of the leading Brass CX Type Cable Glands manufacturers and suppliers in India. These Brass CX Type Cable Glands available with us are available in nickel plated and natural brass finish. We have with ease outclassed our competitors in the manufacturing of higher quality and durable cw brass cable glands. The other finishing of Brass CX Type Cable Glands are done by as per customer requirement.

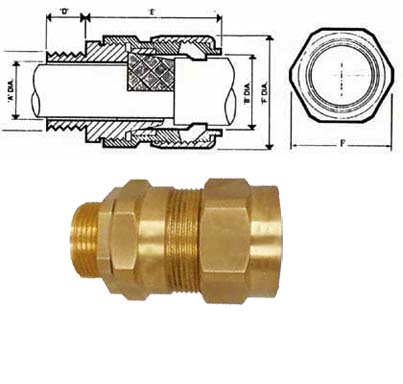

| Metric thread entry size MM | Dimensions | Braidthickness maximum MM | Equivalent imperial thread size inches | Minimum entry thread length 'D' MM | Assembled length excl. thread entry 'E' MM Appx. (maximum) | Brass lock nuts A/F in mm | Hexagon Size 'F' on gland body MM (A/F) | ||
| Bore 'A' | Cable 'B' | ||||||||
| MM | MIN MM | MAX MM | |||||||
| 20 / 16 | 8.7 | 8.0 | 13.5 | 0.85 | 3/4 | 10.0 | 41 | 22 | 23 |
| 20S | 11.7 | 11.2 | 16.0 | 0.85 | 3/4 | 10.0 | 44 | 24 | 23 |
| 20 | 14.0 | 13.2 | 21.0 | 0.85 | 3/4 | 10.0 | 46 | 24 | 26 |
| 25 | 20.0 | 15.5 | 24.0 | 0.9 | 1 | 10.0 | 51 | 30 | 33 |
| 32 | 26.3 | 26.4 | 34.0 | 1.25 | 1 1/4 | 10.0 | 51.5 | 36 | 41 |
| 40 | 32.2 | 31.5 | 40.5 | 1.4 | 1 1/2 | 15.0 | 55 | 46 | 50 |
| 50S | 38.2 | 36.4 | 46.8 | 1.4 | 2 | 15.0 | 54.5 | 55 | 61 |
| 50 | 44.1 | 42.9 | 52.8 | 1.4 | 2 | 15.0 | 70 | 55 | 63 |
| 63S | 50.0 | 46.8 | 60.5 | 1.5 | 2 1/2 | 15.0 | 80 | 70 | 84 |
| 63 | 56.0 | 58.4 | 65.5 | 1.5 | 2 1/2 | 15.0 | 80 | 70 | 85 |
| 75S | 62.0 | 60.0 | 71.8 | 1.5 | 3 | 15.0 | 96 | 80 | 100 |
| 75 | 68.0 | 66.7 | 78.1 | 1.5 | 3. | 15.0 | 96 | 80 | 100 |
S denotes small cable entry size
| Material | Free Cutting Brass IS 319 type (i) or Free Cutting Brass as per BS 249 CZ 121 CDA 360 grade Brass type (i) or High Grade Free Cutting Brass or Any special Brass Material Composition as per customers requirement |
| Threads | ISO Metric (MM Threads). |
| Finish And Coating | Natural, Nickel Plated, Tin Plated or any coating as per customer specification. |
| Standard | BS6121 Part 1 |
| Cable Type | Wire Braid or Steel Tape Armour |
| Armour Clamping | Three part armour lock |
| Sealing | TPE (Thermoplastic Elastomer) |
Any kind of special Brass Cable Glands can be developed and supplied exactly as per customer specifications.
We are one of the leading manufacturers suppliers exporters of Brass CX Type Cable Glands. Please contact us for all your needs of Brass CX Type Cable Glands from Jamnagar- India at best pricing.
