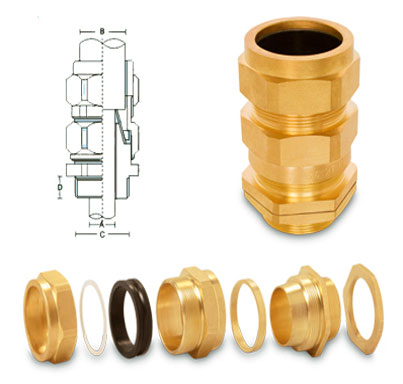

Brass CW Cable Glands
We offer a wide range of very high quality CW Brass Cable Glands to our most trusted customers. These products are used to protect all types of cable in various industries such as telecommunications, control, instrumentation, data and electrical power cables. These products are designed to attach and secure the both the end of a cable of various equipment. These products are offered with positive armor locking, effective earth continuity, increased mechanical strength that are highly appreciated by our clients.
| Sizes of Brass CW Cable glands CW cable gland kits Cable gland packs | 20 mm 25mm 32mm 40mm 50mm 63mm 75mm |
| Standard | EN 50262 : 1999 |
| Application | For indoor or outdoor use with all types of SWA Cable |
| Function | Provide for Environmental Seal in the Cable Outer Sheath,. Also provide mechanical cable retention & electrical continuity. |
| Material | Brass BS 2874 CZ121 Pb3 |
| Optional Threads | METRIC, NPT, BSP, PG or as specified |
| Finish | Brass Finish, Nickel Finish, Chrome Finish or as specified |
| Operating Temp. | Standard seals -200 to +800 C |
| Accessories for CW armoured cable glands | Matching Accessories available like PVC Shrouds, Lock Nuts, Earth Tags, REducers, Adaptors, etc. as per the requirement , Cable glands kits can be offered with PVC shrouds Brass lock nuts and Brass earth tags. LSF Gland kits can also be offered. (Low Smoke and fume) |
Technical Data:
| Size | Thread Size 'C' | Minimum Length of Thread 'D' | Cable Range | ||
| MM | INCH | MAX 'A' | MAX 'B' | ||
| CW 20S | 20 | 3/4 | 10 | 11.80 | 17.80 |
| CW 20L | 20 | 3/4 | 10 | 14.00 | 20.80 |
| CW 25S | 25 | 1 | 10 | 18.00 | 24.00 |
| CW 25L | 25 | 1 | 10 | 20.30 | 27.40 |
| CW 32S | 32 | 1.1/4 | 10 | 24.50 | 31.00 |
| CW 32L | 32 | 1.1/4 | 10 | 26.50 | 34.20 |
| CW 40S | 40 | 1.1/2 | 13 | 30.40 | 38.50 |
| CW 40L | 40 | 1.1/2 | 13 | 33.20 | 41.00 |
| CW 50S | 50 | 2 | 13 | 40.00 | 47.00 |
| CW 50L | 50 | 2 | 13 | 44.00 | 53.50 |
| CW 63S | 63 | 2.1/2 | 14 | 50.00 | 59.00 |
| CW 63L | 63 | 2.1/2 | 13.50 | 56.00 | 66.00 |
| CW 75S | 75 | 3 | 15 | 63.50 | 73.00 |
| CW 75L | 75 | 3 | 15 | 69.00 | 79.00 |
Also available in Kit Packaging and also as per the specification.
