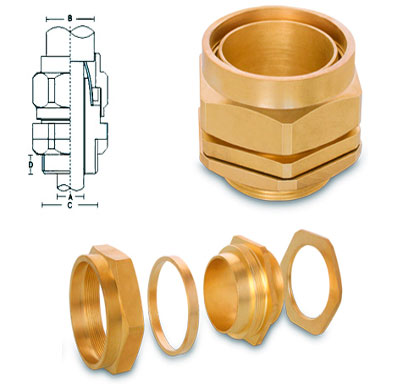

Brass BW3 Parts Cable Glands
The clients can avail from us the finest BW 3 Part Brass Cable Gland that are used in indoor applications. As per the client's requirements, these BW 3 Part Brass Cable Glands are customized by us. We are amongst the prime Manufacturers, Exporters, and Suppliers of BW 3, BW 4 Part Brass Cable Glands in India.
| Size of BW 3 Part and 4 parts Armoured cable glands Armoured cable gland kits packs | 20 mm to 90 mm S & L |
| Standard | BS 6121 |
| Application | Dry Indoor, for use with all types of SWA Cable |
| Function | Provide mechanical Cable Retention & Electrical Wire continuity via Armoured Wire. |
| Material | Brass BS 2874 CZ121 Pb3 or MS58 CDA 360 |
| Optional Threads | METRIC, NPT, BSP, PG or as specified |
| Finish | Brass Finish, Nickel Finish, Chrome Finish or as specified |
| Operating Temp. | -800 C to +3000 C |
| Accessories | Matching Accessories available like PVC Shrouds, Brass Lock Nuts, Earth Tag, Reducers, Adaptors, etc. as per the requirement BW 3 part cable gland kits gland packs can be offered with LSF or normal shrouds. |
Technical Data:
| Size | Thread | Length | A | B | A/F | A/C |
| 20S | M20 | 10.00 | 13.00 | 18.00 | 23.50 | 26.00 |
| 20L | M20 | 10.00 | 14.00 | 21.00 | 25.00 | 28.00 |
| 25S | M25 | 10.00 | 18.00 | 24.00 | 31.00 | 35.50 |
| 25L | M25 | 10.00 | 20.50 | 27.00 | 33.00 | 37.00 |
| 32S | M32 | 10.00 | 27.00 | 33.50 | 40.50 | 45.50 |
| 32L | M32 | 10.00 | 27.00 | 33.50 | 40.50 | 45.50 |
| 40S | M40 | 13.00 | 31.50 | 39.50 | 45.50 | 50.50 |
| 40L | M40 | 13.00 | 33.00 | 41.50 | 49.00 | 55.00 |
| 50S | M50 | 13.00 | 39.50 | 48.50 | 56.50 | 63.50 |
| 50L | M50 | 13.00 | 44.50 | 54.50 | 62.50 | 70.50 |
| 63S | M63 | 14.00 | 50.20 | 59.20 | 68.80 | 77.00 |
| 63L | M63 | 13.50 | 56.50 | 65.50 | 76.00 | 86.00 |
| 75S | M75 | 15.00 | 63.50 | 72.00 | 84.00 | 94.50 |
| 75L | M75 | 15.00 | 69.50 | 78.50 | 90.00 | 101.00 |
| 90S | M90 | 20.00 | 76.00 | 85.00 | 100.00 | 111.20 |
| 90L | M90 | 18.00 | 78.40 | 90.50 | 103.00 | 115.00 |
Also available in Kit Packaging and also as per the specification.
We are one of the leading manufacturers suppliers exporters of Brass BW3 Parts Cable Glands. Please contact us for all your needs of Brass BW3 Parts Cable Glands from Jamnagar- India at best pricing.
